Understanding Structures of the Network and its Common Misconceptions

 Introduction

In the digital age, networks are the backbone of modern communication. Understanding the intricacies of network structures is paramount for optimizing data transmission and connectivity. This technical blog post aims to elucidate the two primary network architectures: Point-to-Point and Multipoint. Through analogies and clear explanations, we'll delve into these concepts and debunk five common misconceptions that often cloud understanding.

Part 1: Analogies for Clear Understanding

Point-to-Point Analogy: Postal Correspondence

Think of Point-to-Point networks as sending letters between two addresses. Each letter is dedicated to its recipient, just like data is exclusively exchanged between two devices. The sender doesn't have to worry about other letters interrupting the communication. This structure ensures a direct and focused data transfer, minimizing latency and potential bottlenecks.



Multipoint Analogy: Broadcasting Station

Imagine a radio station broadcasting its signal to multiple listeners. The station serves as the central hub, disseminating content to a diverse audience. Similarly, a Multipoint network uses a central hub to distribute data to various devices. This central hub efficiently manages data transmission, enabling efficient sharing of information among multiple participants.



Part 2: Unraveling Network Structures

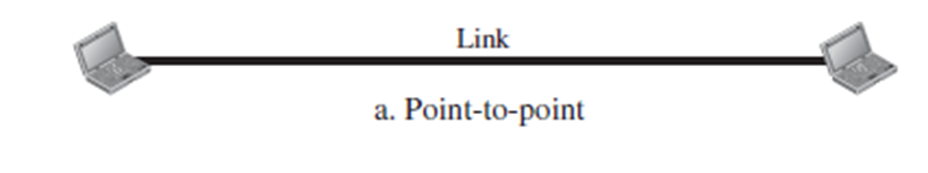

1. Point-to-Point Network Structure

Understanding Point-to-Point Networks

A Point-to-Point network structure is akin to a private, dedicated road connecting two destinations. In this setup, two devices are directly linked, allowing data to traverse between them without the need for intermediary devices. This direct link minimizes latency, boosts data transfer rates, and ensures privacy as communication is exclusive to the connected devices.

Benefits of Point-to-Point Architecture

Speed and Efficiency: By eliminating intermediate devices, Point-to-Point networks offer remarkable data transfer speeds. Whether it's transferring large files or real-time communication, the absence of detours streamlines the process.

Security: The closed nature of Point-to-Point connections enhances security. Data remains confined to the two connected devices, reducing the risk of interception or unauthorized access.

Reliability: With a dedicated link, the chances of network congestion are significantly reduced. This results in consistent, uninterrupted communication without the impact of external factors.

Real-World Applications

Telecommunications

Point-to-Point networks are at the core of telecommunications infrastructure. When you make a phone call or send a text message, the signals travel directly between your device and the recipient's device. This ensures the real-time nature of voice and text communication.

Leased Lines for Businesses

Businesses often utilize Point-to-Point connections through leased lines. These dedicated connections ensure secure and reliable data transfer between two locations. This is commonly employed for interoffice communication, ensuring seamless sharing of sensitive data.

Wireless Point-to-Point Links

Even in wireless communication, Point-to-Point connections find relevance. In scenarios where a physical connection isn't feasible, wireless Point-to-Point links provide high-speed data transfer over short distances, offering connectivity solutions for remote offices, buildings, or events.

Point-to-Point vs. Other Network Architectures

Point-to-Point network structures shine in scenarios where efficiency, speed, and privacy are paramount. However, it's essential to note that other architectures like Multipoint or Mesh networks have their own strengths, catering to different connectivity needs. While Point-to-Point offers direct, exclusive connections, other structures might excel in scalability or redundancy.

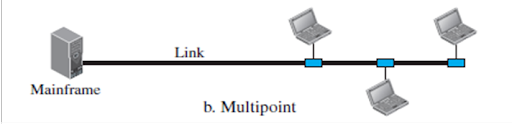

2. Multipoint Network Structure

In the intricate realm of networking, the Multipoint network structure stands as a versatile framework that facilitates seamless communication among multiple devices. From its adaptable nature to its real-world applications, this architecture plays a pivotal role in enabling widespread connectivity. In this comprehensive blog post, we embark on a journey to unravel the intricacies of the Multipoint network structure, its advantages, practical implementations, and how it forms the backbone of efficient data sharing in today's interconnected landscape.

Decoding Multipoint Networks

A Multipoint network structure resembles a dynamic hub that interconnects multiple devices within a network. Unlike Point-to-Point connections, where two devices have an exclusive link, Multipoint networks enable numerous devices to communicate through a central hub. This setup fosters efficient data sharing, making it ideal for scenarios involving group communication and data dissemination.

Advantages of Multipoint Architecture

Resource Sharing: The central hub in Multipoint networks acts as a central repository for data, resources, or applications. This allows multiple devices to access and share resources seamlessly.

Scalability: Multipoint networks can easily accommodate additional devices without requiring substantial changes to the existing infrastructure. This scalability is valuable for growing organizations or networks.

Reduced Complexity: Devices in a Multipoint network need to establish a connection only with the central hub, reducing the complexity of direct connections between every pair of devices.

Real-World Applications

Video Conferencing

Multipoint networks play a pivotal role in video conferencing solutions. Multiple participants connect to a central hub, facilitating real-time audio and video communication. This setup mirrors a virtual meeting room, enabling collaborative discussions regardless of participants' geographical locations.

Wi-Fi Networks

In a Wi-Fi network, access points serve as the central hubs, connecting multiple devices simultaneously. Users within the network can access the internet, share files, and communicate seamlessly through the central access point.

Public Transportation Systems

Imagine a city's public transportation system where multiple bus routes converge at a central hub, enabling passengers to switch routes efficiently. Similarly, Multipoint networks are used in public transportation systems, ensuring effective communication between buses, stations, and control centers.

Multipoint vs. Other Network Architectures

Multipoint networks shine in scenarios that demand group communication, resource sharing, and scalability. While Point-to-Point networks excel in direct, exclusive communication, and Mesh networks offer robust redundancy, Multipoint networks are ideal for situations where data dissemination to multiple devices is paramount.



Part 3: Dispelling Common Misconceptions

Misconception 1: Point-to-Point networks are only for long distances.

Reality: While Point-to-Point networks are great for long distances, they are also employed in short-range connections, like connecting devices within a home network, ensuring secure and dedicated communication.


Misconception 2: Multipoint networks are less secure due to shared connections.

Reality: Multipoint networks can employ encryption and security measures, just like Point-to-Point networks. A well-secured hub ensures data privacy and integrity even in a shared environment.


Misconception 3: Point-to-Point networks are faster than Multipoint networks.

Reality: Speed depends on factors like technology used and bandwidth allocation. Both network structures can achieve high-speed connections when appropriately designed.


Misconception 4: Multipoint networks always have a single point of failure.

Reality: Well-designed Multipoint networks can have redundant hubs, reducing the risk of a single point of failure. This enhances reliability and minimizes downtime.


Misconception 5: Multipoint networks are more complex to set up.

Reality: Both Point-to-Point and Multipoint networks have their intricacies. Modern technology and networking tools have simplified the setup of both architectures.

Conclusion

Understanding network structures is essential for optimizing connectivity in today's interconnected world. By comprehending the nuances of Point-to-Point and Multipoint architectures and dispelling misconceptions, you equip yourself with the knowledge to design and implement efficient and reliable network solutions. Just as a seamless telephone conversation or a well-coordinated conference call fosters effective communication, mastering these network structures empowers you to build robust and resilient networks that meet the demands of the digital age.


Test Your Knowledge Here:

1. What is the primary characteristic of a Point-to-Point network structure?

a) Central hub connecting multiple devices

b) Direct link between two devices

c) Exclusive resource sharing among devices

d) Dynamic data distribution

2. Which analogy best describes a Point-to-Point network structure?

a) Broadcasting station

b) Private conversation between two friends

c) A city's public transportation system

d) Multiple devices connecting to a central hub

3. What is the key advantage of a Point-to-Point architecture?

a) Scalability for growing networks

b) Efficient resource sharing

c) Reduced complexity

d) Direct communication between multiple devices

4. In a Multipoint network structure, communication occurs:

a) Exclusively between two devices

b) Through a dedicated central hub

c) In a mesh-like interconnected pattern

d) Through a single, isolated device

5. What analogy best represents a Multipoint network structure?

a) Telephone line between two friends

b) Broadcasting radio station

c) Private conversation between devices

d) Conference call with multiple participants

6. What's a primary benefit of Multipoint networks?

a) Reduced complexity

b) Exclusive data sharing

c) Direct communication

d) Scalability for additional devices

7. Which network structure is ideal for scenarios where resource sharing and scalability are essential?

a) Point-to-Point

b) Multipoint

c) Mesh

d) Hybrid

8. In a Point-to-Point network, how is data transfer affected by intermediary devices?

a) Data transfer is slowed down

b) Data transfer is unaffected

c) Data transfer is optimized

d) Data transfer is not possible

9. Multipoint networks are commonly used in:

a) Direct phone calls

b) Leased lines between offices

c) Exclusive resource sharing

d) One-to-one communication

10. Which network structure resembles a private, dedicated road connecting two destinations?

a) Multipoint

b) Mesh

c) Point-to-Point

d) Broadcast

11. What is the primary purpose of a central hub in a Multipoint network?

a) Exclusive communication

b) Enhanced data encryption

c) Efficient data sharing

d) Redundant connections

12. Point-to-Point networks are commonly used in:

a) Video conferencing

b) Public Wi-Fi networks

c) Direct phone calls

d) Broadcasting stations

13. Which network structure is highly efficient for real-time audio and video communication among multiple participants?

a) Point-to-Point

b) Mesh

c) Multipoint

d) Hybrid

14. Multipoint networks are known for their ability to:

a) Enhance security through exclusive links

b) Facilitate efficient data sharing among multiple devices

c) Offer high-speed direct connections

d) Minimize latency in direct communication

15. What analogy best represents a Point-to-Point network structure?

a) Conference call with multiple participants

b) Radio broadcasting station

c) Direct telephone line between two friends

d) Shared data resources among devices

16. Which network structure excels in scenarios where group communication and data dissemination are vital?

a) Mesh

b) Point-to-Point

c) Multipoint

d) Broadcast

17. In a Multipoint network, devices communicate:

a) Exclusively with the central hub

b) Directly with each other

c) Through a single, isolated device

d) In a mesh-like interconnected pattern

18. What's a primary advantage of Point-to-Point networks?

a) Scalability for growing networks

b) Direct communication between multiple devices

c) Exclusive resource sharing

d) Reduced complexity

19. Multipoint networks are often utilized in:

a) Direct phone calls

b) Leased lines between offices

c) Broadcasting radio stations

d) Exclusive communication between two devices

20. What's a primary advantage of Multipoint networks?

a) Exclusive communication between devices

b) Reduced complexity

c) Scalability for additional devices

d) Direct communication


Solution:

1             b

2             b

3             c

4             b

5             d

6             d

7             b

8             b

9             b

10           c

11           c

12           c

13           c

14           b

15           c

16           c

17           a

18           b

19           b
